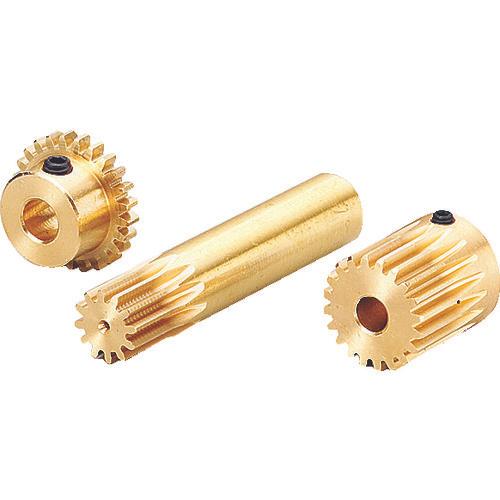

KG spur gear S75B 24B-P-0306

[Features] ● Compact precision gear.

[Applications] ● Used for general industrial machinery, medical equipment, and food machinery.

[Specifications] ● Module: 0.75 ● Number of teeth: 24 ● Shape: B1 ● Standard circle diameter (mm): φ18 ● Face width (mm): 3 ● Hole diameter (mm): φ6 ● Tip circle diameter: φ19.5 ●Total length (mm): 10 ●Hub outer diameter: φ14 ●Tip circle diameter (mm): φ19.5 ●Mounting screw M: M4 ●Mounting screw ls: 3.5 ●Hub length (mm): 7 ●Hub outer diameter (mm): φ14

[Specification 2] - Gear accuracy: JIS B 1702-1 (ISO) 9-10 class - Tooth profile: Full tooth - Pressure angle: 20°

[Material/Finish] ● C3604B (free-cutting brass bar) ● C3713P (free-cutting brass plate)

[Set Contents/Accessories] ●One set screw is included.
