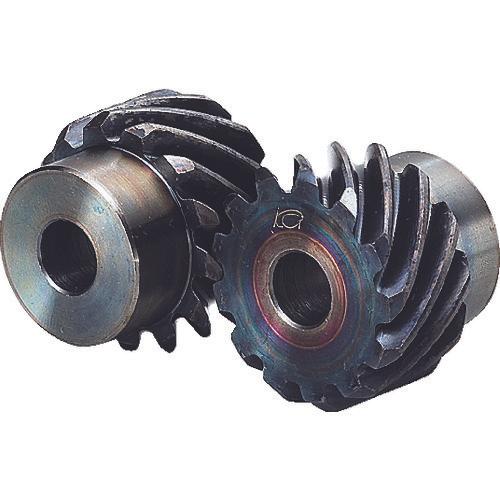

KG helical H1.5S 26L-A-B

[Features] ● Induction hardened teeth HRC47-53.

[Applications] ● Used for general industrial machinery, semiconductor manufacturing, food machinery, transport machinery, etc.

[Specifications]-Module: 1.5-Number of teeth: 26-Standard circle diameter (mm): φ55.15-Face width (mm): 15-Hole diameter (mm): φ12-Overall length (mm): 25-Twist direction: L Shape: B1 Tip circle diameter (mm): φ58.2 Hub length (mm): 10 Hub outer diameter (mm): φ40 Mounting screw M: 2-M5 Mounting screw ls: 5

[Specification 2] - Gear accuracy: JIS B 1702-1 (ISO) grade 9 - Tooth profile: full tooth - Pressure angle: 20° - Helix angle: 45°

[Material/Finish] ● S45C (carbon steel for mechanical structure)

[Set Contents/Accessories] ●Two set screws are included.

[Caution] ●If the mating gear is used in combination with a product other than our company's, there is a risk of malfunction. For other details, please refer to the notes on using helical gears in the KG gear information section of the KG general catalog.
