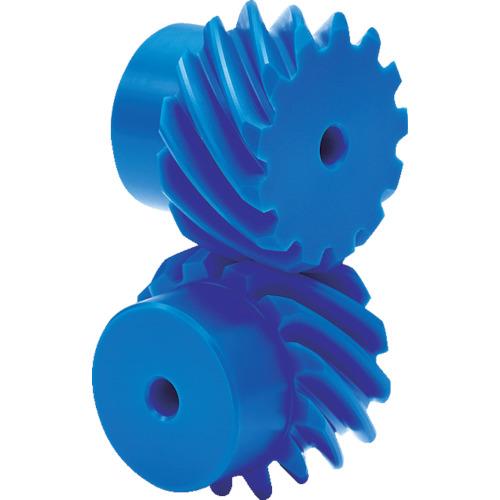

[Features] ● Hood contact blue POM gear series Blue polyacetal resin is used. ●Blue POM, which is not found in food material colors, is ideal for food and packaging equipment as a countermeasure against foreign matter contamination.
[Applications] ●For food, packaging equipment, medical equipment, etc.
[Specifications]-Module: 1.5-Number of teeth: 10-Standard circle diameter (mm): φ21.21-Face width (mm): 15-Hole diameter (mm): φ6-Overall length (mm): 25-Twist direction: R ● Hub outer diameter: φ16 ● Hub length (mm): 10 ● Tip circle diameter: φ24.2 ● Tip circle diameter (mm): φ24.2 ● Pressure angle: 20° (full tooth) ● Helix angle : 45° ● Hub outer diameter (mm): φ16 ● Hub length (mm): 10 ● Hub outer diameter: φ16 ● Tip circle diameter: φ24.2 ● Tip circle diameter (mm): φ24.2
[Specification 2] ●U.S. and EU markets Food contact applications/regulatory compliance ●JISB1702-1 (ISO) Class 9 to 10 ●Pressure angle: 20° (full tooth) ●Torsion angle: 45°
[Material/Finish] Blue polyacetal resin
[Set contents/accessories] -
[Caution] ●Please note that it cannot be used for applications that come into contact with food with an alcohol concentration of over 15%. ●Before using this product, confirm its safety under the actual usage conditions of the final product using this product. ● The blue POM gear series is manufactured in an environment where cutting oil, etc., may come in contact with it.
