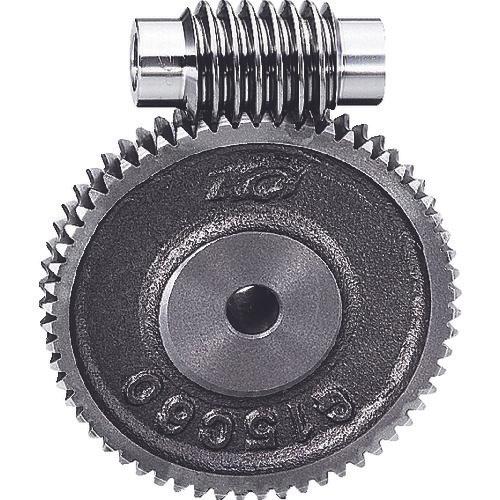

KG worm wheel G1.5C 80-M-R1

[Features]● Tooth profile: full tooth, pressure angle: 20° worm wheel.

[Applications] ●For general industrial machinery, medical equipment, food machinery, etc.

[Specifications]-Worm twist direction and number of threads (mm): R1-Module: 1.5-Tooth width (mm): 14-Hole diameter (mm): φ15-Tooth ratio: 80-Overall length (mm): 29 Number of teeth: 80 ● Shape: 2B ● Worm twist direction and number of threads: R1 ● Tip circle diameter (mm): φ126 ● Hub length (mm): 15 ● Hub outer diameter (mm): φ50 ● Mesh pitch circle Diameter (mm): φ120

[Specification 2] - Tooth profile: full tooth - Pressure angle: 20°

[Material/Finish] FC200 gray cast iron

[Set contents/accessories]
-

[Caution] ● In order to obtain ideal meshing, when assembling the worm and worm wheel, make sure that the squareness is correct. ●Since the friction between the worm and the worm wheel is large, please operate the worm in lubricating oil as much as possible. ●Make sure that the worm and worm wheel have the same twist direction and number of threads. ●For the worm shaft and worm wheel shaft, please design the bearings as close to the gears as possible to prevent bending. ●Please note that the axial thrust acting on the worm is considerably large. For axial thrust, please refer to KG Gear Information in the General Catalog.
