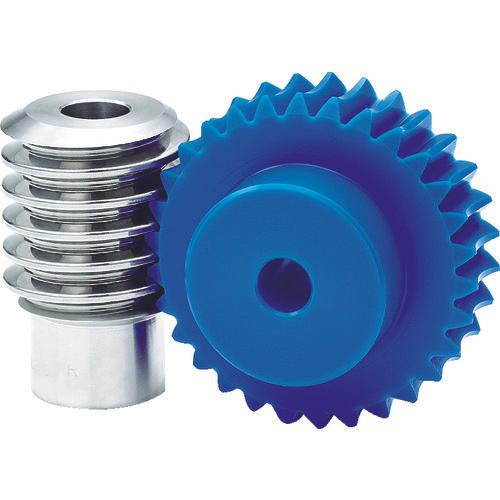

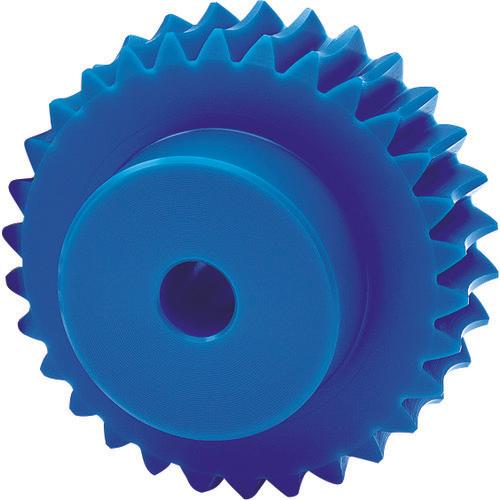

[Features]● Blue polyacetal resin is used for the hood contact and blue POM gear series. ●Blue POM, which is not found in food material colors, is ideal for food and packaging equipment as a countermeasure against foreign matter contamination.
[Applications] ●For food, packaging equipment, and medical equipment.

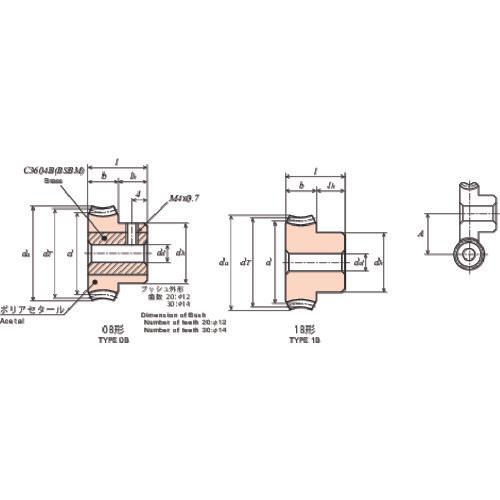

[Specifications] ● Module: 1.5 ● Reference circle diameter d (mm): - ● Pitch circle diameter d (mm): 60 ● Reference circle diameter (mm): - ● Face width (mm): 15 ● Hole diameter (mm) ): φ10 ● Direction of twist: R ● Tooth ratio: 40 ● Overall length (mm): 28 ● Hub outer diameter: φ40 ● Number of teeth: 40 ● Number of threads: 1 ● Shape: 1B ● Pitch circle diameter (mm): 60 ● Tip circle diameter (mm): φ65.3 ● Shift coefficient: -0.036 ● Throat diameter (mm): φ63 ● Hub outer diameter (mm): φ40 ● Hub length (mm): 13 ● Contact center distance (mm): 42.5 - Worm twist direction and number of threads: R1 - Worm gear pressure angle 20° (full tooth)
[Specification 2] ●U.S. and EU markets Food contact applications, compliance with regulations ●Tooth profile: Full teeth ●Pressure angle: 20°
[Material/Finish] Blue polyacetal resin
[Set contents/accessories] -
[Caution] ●Please note that it cannot be used for applications that come into contact with food with an alcohol concentration of over 15%. ●Before using this product, confirm its safety under the actual usage conditions of the final product using this product. ● The blue POM gear series is manufactured in an environment where cutting oil, etc., may come in contact with it. ●Make sure that the worm and worm wheel have the same twist direction and number of threads.
