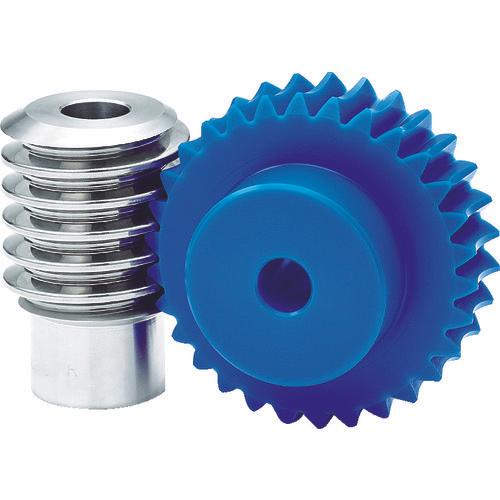

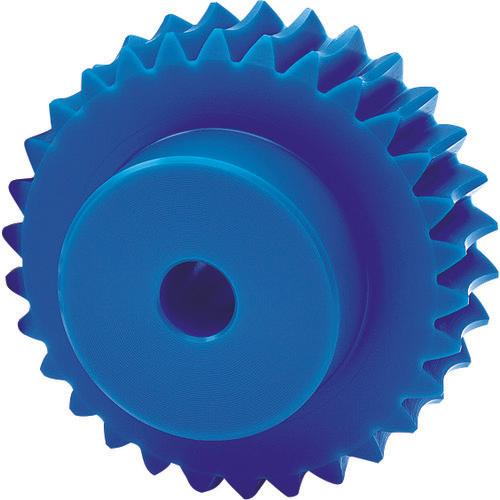

[Features]● Blue polyacetal resin is used for the hood contact and blue POM gear series. ●Blue POM, which is not found in food material colors, is ideal for food and packaging equipment as a countermeasure against foreign matter contamination.
[Applications] ●For food, packaging equipment, and medical equipment.

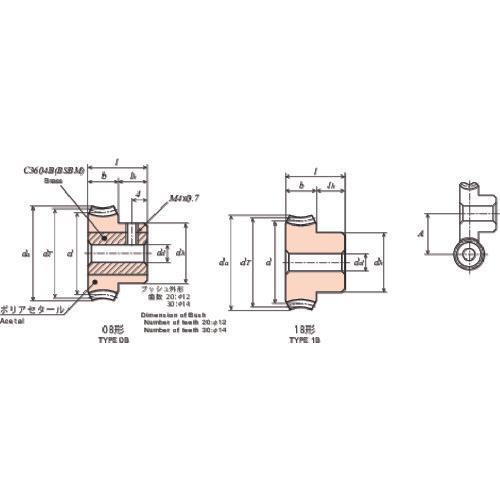

[Specifications] ● Module: 1.5 ● Reference circle diameter d (mm): - ● Pitch circle diameter d (mm): 30 ● Reference circle diameter (mm): - ● Face width (mm): 15 ● Hole diameter (mm) ): φ6 ● Torsion direction: R ● Tooth ratio: 20 ● Total length (mm): 25 ● Hub outer diameter: φ25 ● Number of teeth: 20 ● Number of threads: 1 ● Shape: 1B ● Pitch circle diameter (mm): 30 ● Tip circle diameter (mm): φ35.3 ● Shift coefficient: -0.018 ● Throat diameter (mm): φ33 ● Hub outer diameter (mm): φ25 ● Hub length (mm): 10 ● Contact center distance (mm): 27.5 - Worm twist direction and number of threads: R1 - Worm gear pressure angle 20° (full tooth)
[Specification 2] ●U.S. and EU markets Food contact applications, compliance with regulations ●Tooth profile: Full teeth ●Pressure angle: 20°
[Material/Finish] Blue polyacetal resin
[Set contents/accessories] -
[Caution] ●Please note that it cannot be used for applications that come into contact with food with an alcohol concentration of over 15%. ●Before using this product, confirm its safety under the actual usage conditions of the final product using this product. ● The blue POM gear series is manufactured in an environment where cutting oil, etc., may come in contact with it. ●Make sure that the worm and worm wheel have the same twist direction and number of threads.
