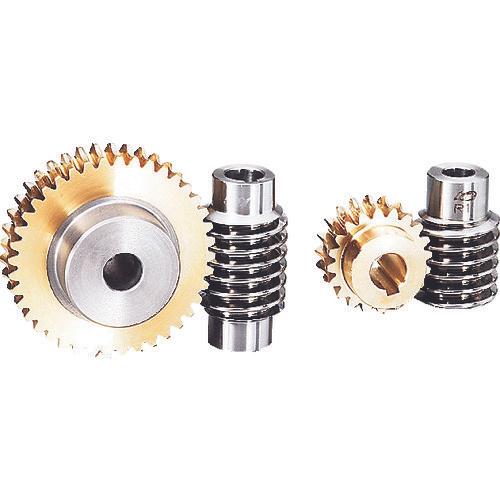

KG worm wheel G1.5A 30L1-M-10

[Features]● Tooth profile: full tooth, pressure angle: 20° worm wheel.

[Applications] ●For general industrial machinery, medical equipment, food machinery, etc.

[Specifications]-Worm twist direction and number of threads (mm): L1-Module: 1.5-Face width (mm): 15-Hole diameter (mm): φ10-Twisting direction: L-Tooth ratio: 30-Overall length ( mm): 25 ● Number of teeth: 30 ● Shape: 1B ● Pitch circle diameter (mm): φ45 ● Worm twist direction and number of threads: L1 ● Key groove b2 x t2 (mm): - Throat diameter (mm) ): φ48 ● Hub length (mm): 10 ● Hub outer diameter (mm): φ30 ● Tip circle diameter (mm): φ50.3 ● Center distance of engagement (mm): 35

[Specification 2] - Tooth profile: full tooth - Pressure angle: 20°

[Material/Finish] C6191BE aluminum bronze

[Set contents/accessories]
-

[Caution] ● In order to obtain ideal meshing, when assembling the worm and worm wheel, make sure that the squareness is correct. ●Since the friction between the worm and the worm wheel is large, please operate the worm in lubricating oil as much as possible. ●Make sure that the worm and worm wheel have the same twist direction and number of threads. ●For the worm shaft and worm wheel shaft, please design the bearings as close to the gears as possible to prevent bending. ●Please note that the axial thrust acting on the worm is considerably large. For axial thrust, please refer to KG Gear Information in the General Catalog.
