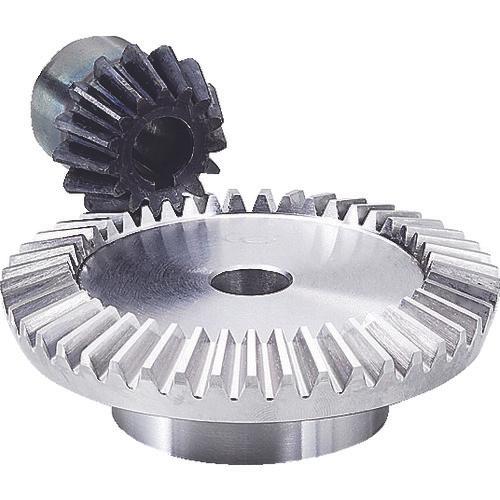

KG bevel gear B2S 18-M-10

[Features]● Bevel gears that are easy to modify. ●The H at the end of the part number is an induction hardened tooth.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 18 ● Standard circle diameter (mm): φ36 ● Tooth width (mm): 12.6 ● Hole diameter (mm): φ10 ● Overall length (mm): 29 ● Mounting screw ls :-● Mounting screw M:- ● Tip circle diameter (mm): φ37.81 (φ39.58) ● Hole length (mm) ● Assembly distance (mm): 53.12 ● Hub outer diameter (mm): φ28 ● Module: 2 ● Hub length (mm): 15.12 ● Attached screws (2 pieces): - Mounting screw ls: - Mounting screw M: -

[Specification 2] ●Gear accuracy: JIS B 1704 (ISO) Grade 3 (Induction hardened teeth: Grade 4) ●Pressure angle: 20° ●Torsion angle 35°

[Material/Finish] ● S45C (carbon steel for mechanical structure)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
