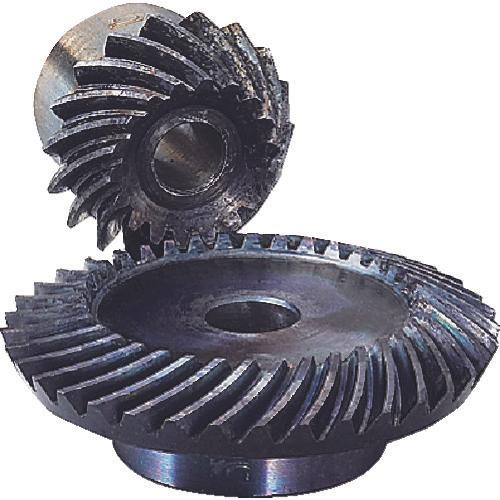

KG bevel gear B2S 18L-M-10

[Features]● Bevel gears that are easy to modify. ● The suffix of the product number indicates induction hardening.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 18 ● Standard circle diameter (mm): φ36 ● Tooth width (mm): 13 ● Hole diameter (mm): φ10 ● Overall length (mm): 29.36 ● Module: 2 ●Assembly distance (mm): 53.12 ●Twisting direction: L ●Tip circle diameter (mm): φ38.35 ●Hole length (mm): 27 ●Hub outer diameter (mm): φ28 ●Hub length (mm) : 15.12 ● Mounting screw M: - ● Mounting screw ls: - Tip angle: 30°53' ● Assembly distance (mm): 53.12 ● Module: 2

[Specification 2] ● Gear accuracy: JIS B 1704 (ISO) Grade 3 (high-frequency hardening product: Grade 4) ● Torsion angle 35° ● Pressure angle: 20°

[Material/Finish] ● S45C (carbon steel for mechanical structure)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
