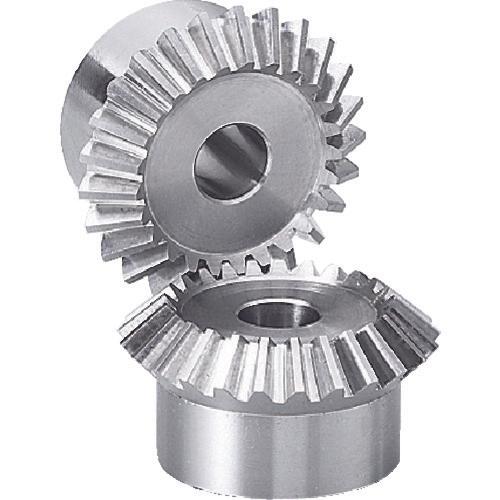

KG bevel gear B1SU 40-M-8

[Features]● Bevel gears that are easy to modify.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 40 ● Standard circle diameter (mm): φ40 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ8 ● Total length (mm): 15.02 ● Module: 1 ● Mounting screw ls:- ● Mounting screw M:- ● Tip circle diameter (mm): φ40.89 ● Hole length (mm) ● Assembly distance (mm): 21.8 ● Hub outer diameter (mm): φ25 ● Hub Length (mm): 8.0 ● Module: 1 ● Mounting screw ls: - ● Mounting screw M: - Attached screws (2 pieces): -

[Specification 2] Gear accuracy: JIS B 1704 (ISO) 4th grade Pressure angle: 20°

[Material/Finish] SUS304 (stainless steel bar)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
