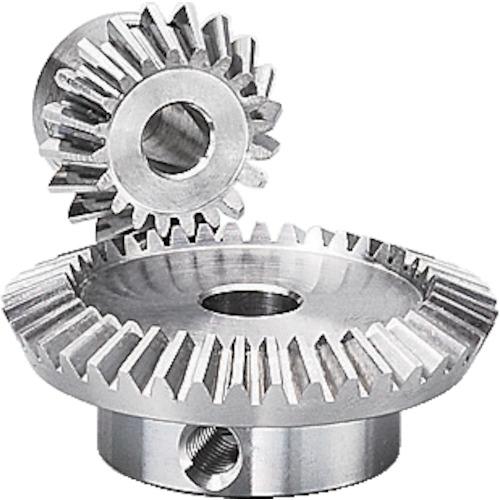

KG bevel B1SU40-A-8

[Features]● Bevel gears that are easy to modify.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 40 ● Standard circle diameter (mm): φ40 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ8 ● Total length (mm): 15.02 ● Mounting screw ls : 4 - Mounting screw M: M5 - Tip circle diameter (mm): φ40.89 - Hole length (mm) - Assembly distance (mm): 21.80 - Hub outer diameter (mm): φ25 - Hub length (mm) ): 8.0 ● Module: 1 ● Attached screws (2 pieces): - ● Mounting screw ls: 4 ● Mounting screw M: M5

[Specification 2] Gear accuracy: JIS B 1704 (ISO) 4th grade Pressure angle: 20°

[Material/Finish] SUS304 (stainless steel bar)

[Set contents/accessories]
-

【Note】
-
