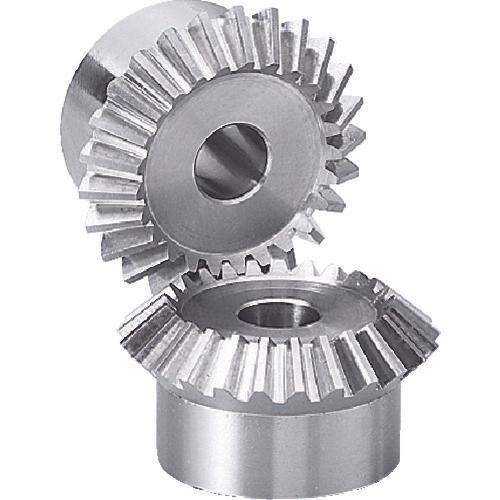

KG bevel gear B1SU 20-M-6

[Features]● Bevel gears that are easy to modify.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 20 ● Standard circle diameter (mm): φ20 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ6 ● Overall length (mm): 15.03 ● Module: 1 ● Mounting screw ls: - ● Mounting screw M: - ● Tip diameter (mm): φ21.79 ● Hole length (mm) ● Assembly distance (mm): 29.60 ● Hub outer diameter (mm): φ16 ● Hub Length (mm): 8.6 ● Module: 1 ● Mounting screw M: - Attached screws (2 pieces): - ● Mounting screw ls: -

[Specification 2] Gear accuracy: JIS B 1704 (ISO) 4th grade Pressure angle: 20°

[Material/Finish] SUS304 (stainless steel bar)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
