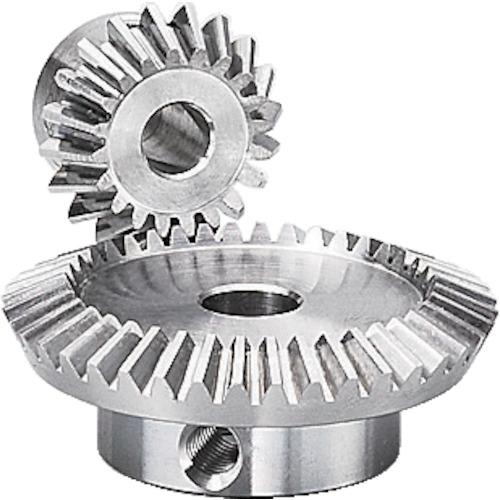

KG bevel B1SU20-A-6

[Features]● Bevel gears that are easy to modify.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 20 ● Standard circle diameter (mm): φ20 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ6 ● Overall length (mm): 15.03 ● Mounting screw ls : 4 - Mounting screw M: M4 - Tip circle diameter (mm): φ21.79 - Hole length (mm) - Assembly distance (mm): 29.60 - Hub outer diameter (mm): φ16 - Hub length (mm) ): 8.6 - Module: 1 - Attached screws (2 pieces): - - Mounting screw ls: 4 - Mounting screw M: M4

[Specification 2] Gear accuracy: JIS B 1704 (ISO) 4th grade Pressure angle: 20°

[Material/Finish] SUS304 (stainless steel bar)

[Set contents/accessories]
-

【Note】
-
