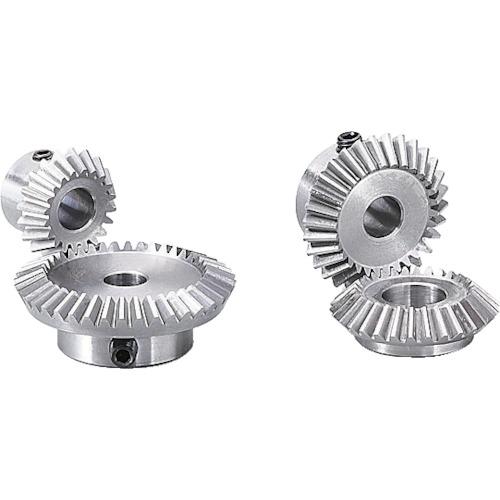

KG bevel B1S45-M-10

[Features]
-

[Use]
-

[Specifications] ● Tooth ratio: 3 ● Number of teeth: 45 ● Standard circle diameter (mm): φ45 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ10 ● Total length (mm): 14.97 ● Mounting screw ls :-● Mounting screw M:- ● Tip circle diameter (mm): φ45.37 ● Hole length (mm) ● Assembly distance (mm): 20 ● Hub outer diameter (mm): φ25 ● Hub length (mm ): 8.00 ● Module: 1 ● Mounting screw ls: - ● Mounting screw M: - Attached screws (2 pieces): -

[Specification 2] Gear accuracy: JIS B 1704 Grade 3 Pressure angle: 20°

[Material/Finish] Carbon steel for machine structure (S45C)

[Set contents/accessories]
-

【Note】
-
