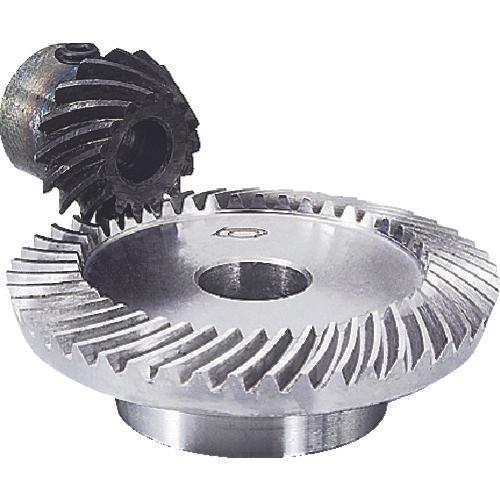

KG bevel gear B1S40R-10

[Features]● Bevel gears that are easy to modify. ● The suffix of the product number indicates induction hardening.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 40 ● Standard circle diameter (mm): φ40 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ10 ● Overall length (mm): 14.57 ● Module: 1 ●Assembly distance A (mm): 21.8 ●Hole diameter H7 (mm): 10 ●Assembly distance (mm): 21.8 ●Twisting direction: R ●Tip circle diameter (mm): φ40.41 ●Hole length (mm) : 13 ● Hub outer diameter (mm): φ25 ● Hub length (mm): 8 ● Mounting screw M: - ● Mounting screw ls: - ● Tip angle: 65°36′ ● Module: 1 ● Assembly distance (mm ): 21.8 - Assembly distance A (mm): 21.8 - Hole diameter H7 (mm): 10

[Specification 2] ● Gear accuracy: JIS B 1704 (ISO) Grade 3 (high-frequency hardening product: Grade 4) ● Torsion angle 35° ● Pressure angle: 20°

[Material/Finish] ● S46C (carbon steel for mechanical structure)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
