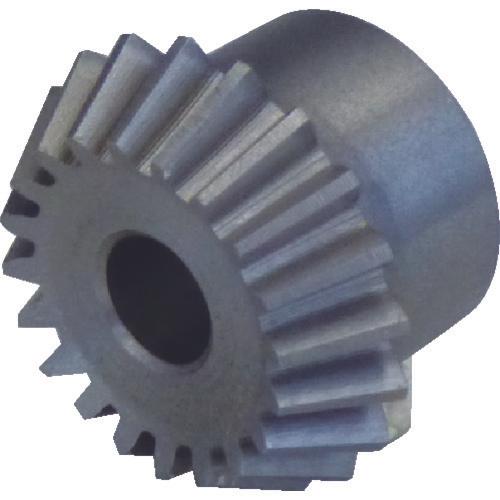

KG bevel B1S20-M-6

[Features]● Bevel gears that are easy to modify. ●The H at the end of the part number is an induction hardened tooth.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 20 ● Standard circle diameter (mm): φ20 ● Tooth width (mm): 5.7 ● Hole diameter (mm): φ6 ● Overall length (mm): 15.03 ● Mounting screw ls :-● Mounting screw M:- ● Tip circle diameter (mm): φ21.79 ● Hole length (mm) ● Assembly distance (mm): 29.6 ● Hub outer diameter (mm): φ16 ● Hub length (mm ): 8.6 ● Module: 1 ● Mounting screw M: - Attached screws (2 pieces): - ● Mounting screw ls: -

[Specification 2] ●Gear accuracy: JIS B 1704 (ISO) Grade 3 (Induction hardened teeth: Grade 4) ●Pressure angle: 20°

[Material/Finish] ● S45C (carbon steel for mechanical structure)

[Set contents/accessories]
-

【Note】
-
