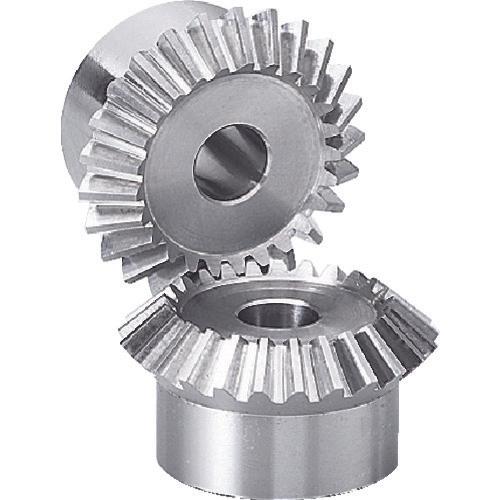

KG bevel gear B1.5SU 36-M-10

[Features]● Bevel gears that are easy to modify.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 2 ● Number of teeth: 36 ● Standard circle diameter (mm): φ54 ● Tooth width (mm): 9.8 ● Hole diameter (mm): φ10 ● Overall length (mm): 18.54 ● Mounting screw ls :-●Mounting screw M:-●Tip circle diameter (mm): φ55.34●Hole length (mm)●Assembly distance (mm): 26.75●Hub outer diameter (mm): φ30●Module: 1.5●Hub Length (mm): 10.0 Mounting screw M: - Attached screws (2 pieces): - Mounting screw ls: -

[Specification 2] Gear accuracy: JIS B 1704 (ISO) 4th grade Pressure angle: 20°

[Material/Finish] SUS304 (stainless steel bar)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
