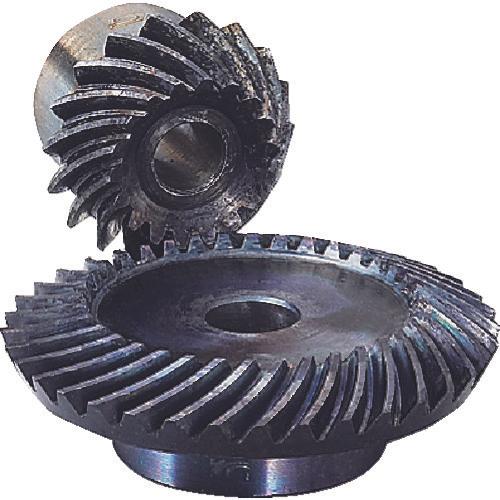

KG bevel gear B1.5S 36R-M-10H

[Features]● Bevel gears that are easy to modify. ● The suffix of the product number indicates induction hardening.

[Applications] ● Used for general industrial machinery, food machinery, medical equipment, etc.

[Specifications] ● Tooth ratio: 3 ● Number of teeth: 36 ● Standard circle diameter (mm): φ54 ● Tooth width (mm): 9.8 ● Hole diameter (mm): φ10 ● Total length (mm): 18.01 ● Module: 1.5 ●Assembly distance (mm): 26.75 ●Twisting direction: R ●Tip circle diameter (mm): φ54.76 ●Hole length (mm): 15.5 ●Hub outer diameter (mm): φ30 ●Hub length (mm) : 9 ● Mounting screw M: - ● Mounting screw ls: - Tip angle: 65°57′ ● Assembly distance (mm): 26.75 ● Module: 1.5

[Specification 2] ●Gear accuracy: JIS B 1704 (ISO) Grade 3 (Induction hardening product: Grade 4) ●Torsion angle: 35° ●Pressure angle: 20° ●Induction hardening

[Material/Finish] ● S45C (carbon steel for mechanical structure)

[Set contents/accessories]
-

[Caution] ● If the mating gear is used in combination with products other than our company's products, problems may occur.
