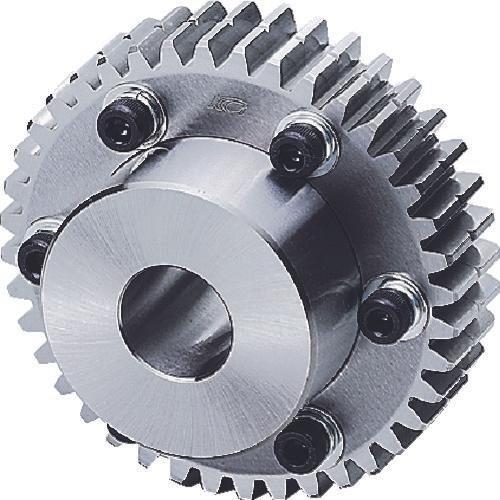

KG control backlash ASG1S70B-M-1012

[Features]● The teeth of the mating gear are sandwiched between the two gears to adjust and fix the backlash to a minimum. ●The backlash prevents misalignment and angle misalignment during forward/reverse rotation, enabling high-precision positioning and indexing. ●Ideal for precision equipment, measuring equipment, robots, and angle transmission.

[Use]
-

[Specifications] ● Module: 1 ● Number of teeth: 70 ● Shape: - ● Standard circle diameter (mm): φ70 ● Tooth width (mm): 10 ● Hole diameter (mm): φ12 ● Overall length (mm): 20 ● Hub Outer diameter: φ40 ● Tip circle diameter (mm): φ72 ● Hub length (mm): 10 ● Hole diameter: φ12 ● Hub outer diameter (mm): φ40 ● Fixing bolt: 6-M4-φ54 ● Hole diameter: φ12

[Specification 2] - Tooth profile: full tooth - Pressure angle: 20°

[Material/Finish] SCM435, 440 (chrome molybdenum steel)

[Set contents/accessories]
-

[Note] ● Please refer to KG gear information in our general catalog.
