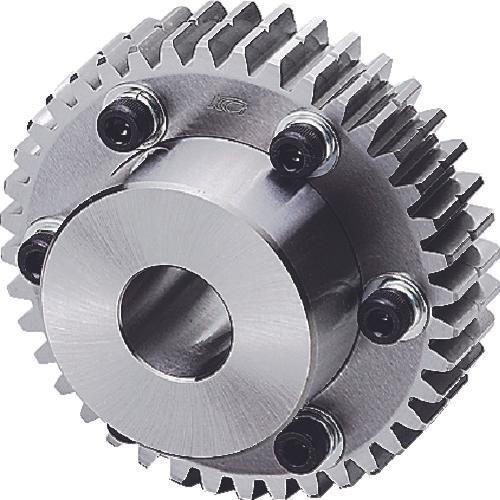

KG control backlash ASG1S120B-M-1015

[Features]● The teeth of the mating gear are sandwiched between the two gears to adjust and fix the backlash to a minimum. ●The backlash prevents misalignment and angle misalignment during forward/reverse rotation, enabling highly accurate positioning and indexing. ●Ideal for precision equipment, measuring equipment, robots, and angle transmission.

[Use]
-

[Specifications] ●Module: 1 ●Number of teeth: 120 ●Shape: -●Standard circle diameter (mm): φ120 ●Tooth width (mm): 10 ●Hole diameter (mm): φ15 ●Overall length (mm): 20 ●Hub Outer diameter: φ80 ● Tip circle diameter (mm): φ122 ● Hub length (mm): 10 ● Hole diameter: φ15 ● Hub outer diameter (mm): φ80 ● Fixing bolt: 6-M5-φ100 ● Hole diameter: φ15

[Specification 2] - Tooth profile: full tooth - Pressure angle: 20°

[Material/Finish] SCM435, 440 (chrome molybdenum steel)

[Set contents/accessories]
-

[Note] ● Please refer to KG gear information in our general catalog.
