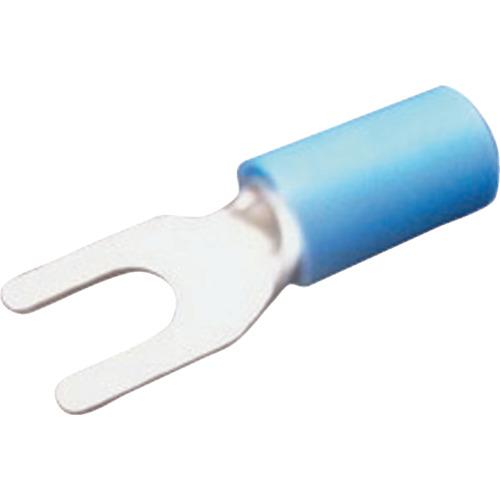

JST vinyl-insulated corner tip open type terminal (straight type) V2-S3A 100 pieces

[Features]
●This is a crimp terminal with an insulation coating that has an open mounting hole on one side of the contact surface (tongue) and can be mounted without completely removing the screw.

[Use]
● Used to connect annealed copper strands.

【specification】
● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63
- Color: blue
- Stud diameter (mm): 3.7
- Total length (mm): 20.2
- Internal dimensions (mm): 3.9
- JIS standard product: ×
●Wire coupling range AWG: 16-14

[Specification 2]
- Tip open type (single wire not supported)
- 1.25SQ: Red
● 2SQ: Blue

[Material/Finish]
●Terminal: Oxygen-free copper (C1020)/Electrotin plating
Insulator: vinyl

[Set contents/accessories]
-

【Note】
-
