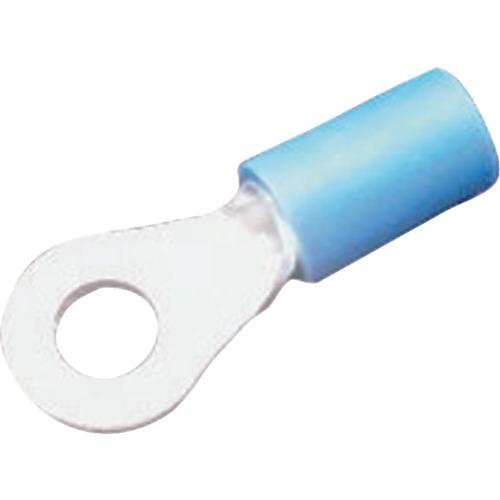

JST Round terminal with vinyl insulation (straight type) V2-3 100 pieces

[Features]
●Insulated crimp terminal with round contact surface (tongue) and mounting holes for screw fixing.

[Use]
● Used to connect annealed copper strands.

【specification】
● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63
- Color: blue
- Stud diameter (mm): 3.2
- Total length (mm): 21
- Internal dimensions (mm): 3.9
- JIS standard product: ×
●Wire coupling range AWG: 16-14

[Specification 2]
-Round type (single wire not supported)
● 0.5SQ: yellow
- 1.25SQ: Red
● 2SQ: blue
●5.5SQ: Yellow

[Material/Finish]
●Terminal: Oxygen-free copper (C1020)/Electrotin plating
Insulator: vinyl

[Set contents/accessories]
-

【Note】
-
