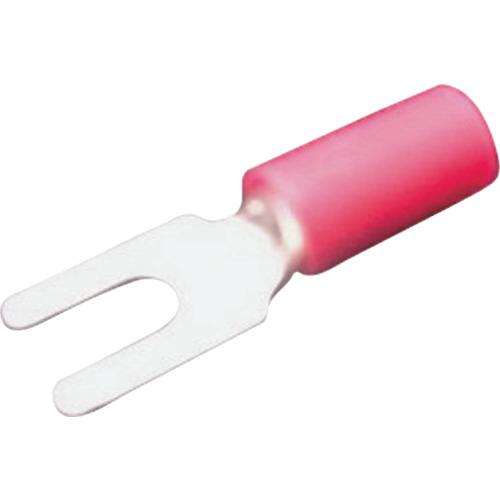

JST vinyl-insulated corner tip open type terminal (straight type) V1.25-YS3A 100 pieces

[Features]
●This is a crimp terminal with an insulation coating that has an open mounting hole on one side of the contact surface (tongue) and can be mounted without completely removing the screw.

[Use]
● Used to connect annealed copper strands.

【specification】
● Wire coupling range Stranded wire ([[MM2]]): 0.25 to 1.65
Color: red
- Stud diameter (mm): 3.7
- Total length (mm): 19.6
- Internal dimensions (mm): 3.2
- JIS standard product: ×
●Wire coupling range AWG: 22-16

[Specification 2]
- Tip open type (single wire not supported)
- 1.25SQ: Red
● 2SQ: Blue

[Material/Finish]
●Terminal: Oxygen-free copper (C1020)/Electrotin plating
Insulator: vinyl

[Set contents/accessories]
-

【Note】
-
