[Features]● Uses high contact pressure and double-sided contact. ●Applies to a wide range of panels.

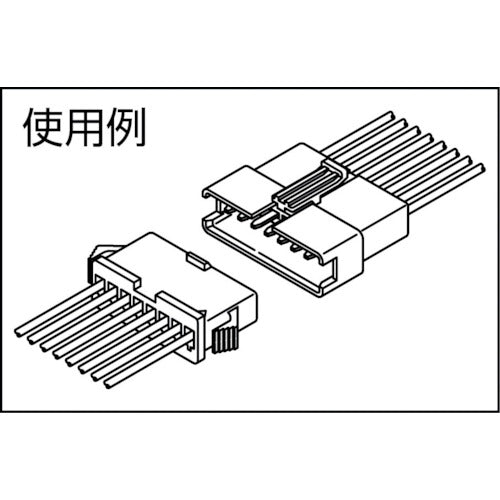

[Use] ●For relay connection. ●2.5mm pitch for wire-to-wire connection.
[Specifications] A (mm): 7.5 Number of poles: 10 Applicable wire range: AWG#28 to #22, 0.08 to 0.33 mm [[square of]] B (mm): 28 Rated current: MAX 3A - C (mm): 18.2 - Insulation resistance: 500 MΩ or more
[Specification 2] ● Rated voltage: MAX250V ● Operating temperature range: -25°C to +85°C (including temperature rise values) ● Withstand voltage: AC1500V/1 minute
