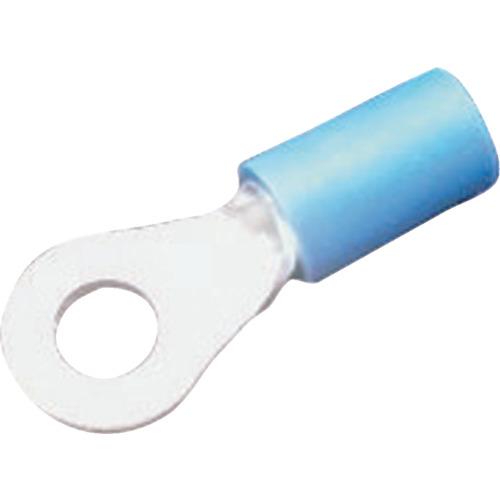

JST round terminal with vinyl insulation (straight type) RAA2-3.5 100 pieces

[Features]● A crimp terminal with insulating coating that has a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Color: Blue ● Stud diameter (mm): 3.7 ● Overall length (mm): 18.6 ● Internal dimensions (mm): 3.9 ● JIS standards Product: ○ Wire connection range AWG: 16-14

[Specification 2] - Round shape (single wire not supported) - 0.5SQ: Yellow - 1.25SQ: Red - 2SQ: Blue - 5.5SQ: Yellow

[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: Vinyl

[Set contents/accessories]
-

【Note】
-
