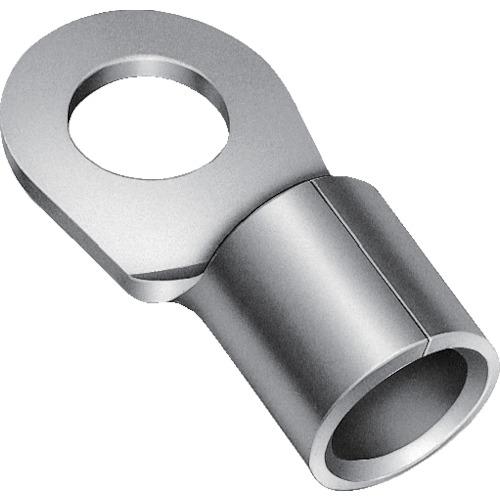

JST round terminal R38-8 10 pieces

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 26.66 to 42.42 ● Stud diameter (mm): 8.4 ● Total length (mm): 42.7 ● Internal dimensions (mm): 9.4 ● JIS standard product: ○● Wire coupling range AWG: 2 Wire coupling range Single wire mm: 5.81 to 7.34 Color: Silver

[Specification 2] Round shape

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
