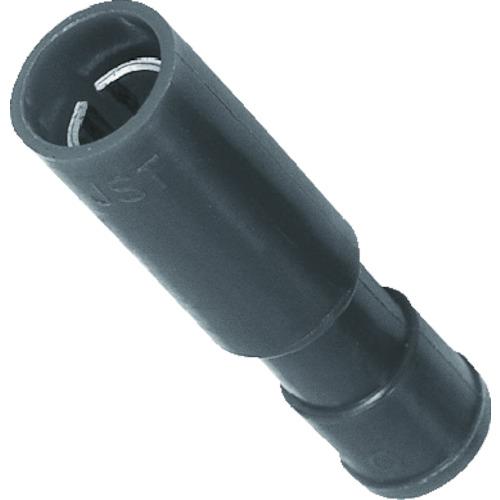

JST nylon insulated bullet connector P CM-1.25 100 pieces

[Features]● Wire connection/relay can be performed with one touch of plugging/unplugging.

[Applications] ●Combination (fitting) of the male side (M) and the female side (F) for wire connection and relaying within equipment.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.75 to 1.25 ● Color: red ● Shape: male ● F (mm): 16.5 ● Total length (mm): 27.7 ● Inner dimension (mm): 3.5 ● JIS standard product: × ● Wire connection range AWG: 18-16

[Specification 2] Rated voltage: 300V

[Material/Finish] ●Terminal: Brass (C2600R)/Electric tin plating ●Insulator: Nylon

[Set contents/accessories]
-

【Note】
-
