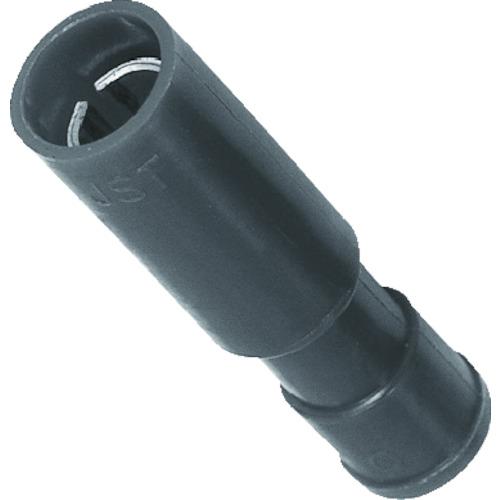

JST nylon insulated bullet connector P CM-0.5 100 pieces

[Features]● Wire connection/relay can be performed with one touch of plugging/unplugging.

[Applications] ●Combination (fitting) of the male side (M) and the female side (F) for wire connection and relaying within equipment.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.50 to 0.75 ● Color: transparent ● Shape: male ● F (mm): 15 ● Overall length (mm): 26.5 ● Inner dimension (mm): 3.1 ● JIS standard product: × ● Wire connection range AWG: 20-18

[Specification 2] Rated voltage: 300V

[Material/Finish] ●Terminal: Brass (C2600R)/Electric tin plating ●Insulator: Nylon

[Set contents/accessories]
-

【Note】
-
