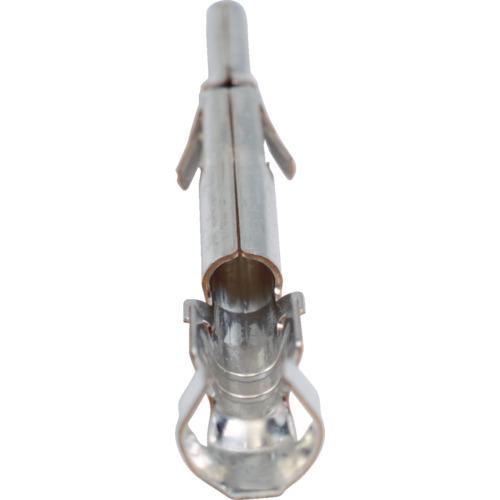

Pin contact for JST EL connector 100 pieces included

[Features] ● Uses a contact that is easy to insert and has excellent holding power. ●Compatible with ML connectors.

[Use] ●For relay connection. ● 4.5mm pitch for wire-to-wire connection.

[Specifications] ● Applicable wire range: 0.5 to 1.25 mm [[square of]], AWG #20 to #16 ● Rated current: MA x 10 A ● Wire coating outer diameter (mm): 1.9 to 3.4 ● Insulation resistance: 1000 MΩ that's all

[Specification 2] ● Rated voltage: MAX300V ● Operating temperature range: -25°C to +90°C (including temperature rise values) ● Withstanding voltage: AC1500V/1 minute

[Material/Finish] Phosphor bronze/tin plating (reflow treatment)

[Set contents/accessories]
-

【Note】
-
