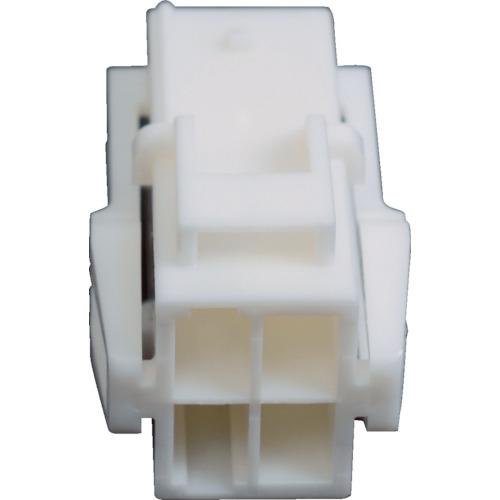

JST HL connector housing receptacle 100 pieces

[Features] ● A free spring structure has been adopted for the contact area. ●Inner lock structure is adopted.

[Use] ●For relay connection. ● 3.96 mm pitch for wire-to-wire connection.

[Specifications] A (mm): 24.1 Number of poles: 12 Applicable wire range: AWG#22 to #18, 0.3 to 0.75 mm [[squared]] B (mm): 11.7 Rated current: MAX 7A - C (mm): 2.5 - D (mm): 25.0 - E (mm): 3.0 - Insulation resistance: 1000 MΩ or more

[Specification 2] ● Rated voltage: MAX300V ● Operating temperature range: -25°C to +90°C (including temperature rise values) ● Withstanding voltage: AC1500V/1 minute

[Material/Finish] ● Nylon 66 (UL94V-0)

[Set contents/accessories]
-

【Note】
-
