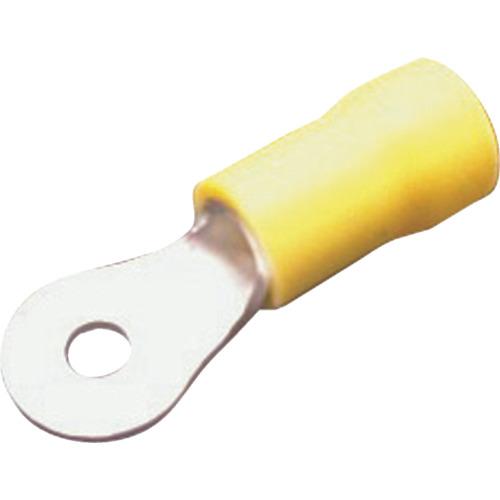

JST round terminal with vinyl insulation (F type) FV5.5-3 100 pieces

[Features]● A crimp terminal with insulating coating that has a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 2.63 to 6.64 ● Color: yellow ● Stud diameter (mm): 3.2 ● Total length (mm): 26.5 ● Internal dimensions (mm): 6.8 ● JIS standards Product: × Wire connection range AWG: 12-10

[Specification 2] - Round shape (single wire not supported) - 0.5SQ: Yellow - 1.25SQ: Red - 2SQ: Blue - 5.5SQ: Yellow

[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: Vinyl

[Set contents/accessories]
-

【Note】
-
