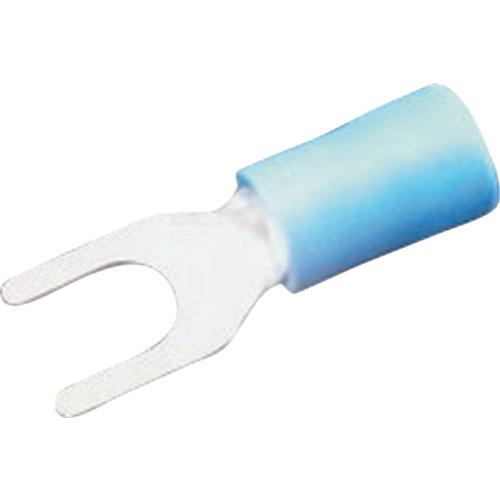

JST vinyl-insulated open-corner terminal (F type) FV2-S3A 100 pieces

[Features]● One side of the mounting hole on the contact surface (tongue) is open, and it is a crimp terminal with an insulation coating that can be mounted without completely removing the screw.

[Applications] ● Used to connect annealed copper strands.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Color: Blue ● Stud diameter (mm): 3.7 ● Total length (mm): 20.2 ● Internal dimensions (mm): 4.5 ● JIS standards Product: × Wire connection range AWG: 16-14

[Specification 2] ● Open type (single wire not supported) ● 1.25SQ: Red ● 2SQ: Blue

[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: Vinyl

[Set contents/accessories]
-

【Note】
-
