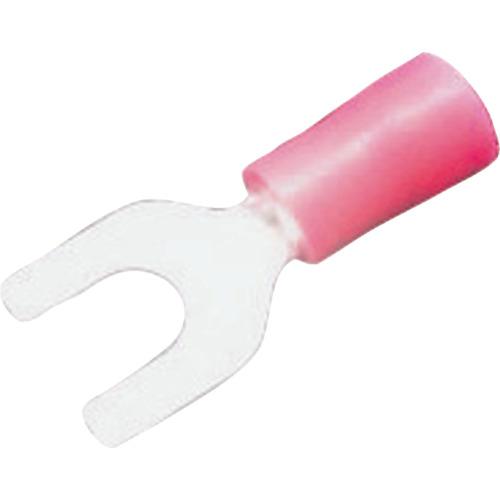

JST vinyl-insulated square tip opening type terminal (F type) FV1.25-S3A 100 pieces

[Features]● One side of the mounting hole on the contact surface (tongue) is open, and it is a crimp terminal with an insulation coating that can be mounted without completely removing the screw.

[Applications] ● Used to connect annealed copper strands.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.25 to 1.65 ● Color: red ● Stud diameter (mm): 3.7 ● Total length (mm): 20.0 ● Internal dimensions (mm): 4.0 ● JIS standards Product: × Wire connection range AWG: 22-16

[Specification 2] ● Open front type (not compatible with single wire) ● 1.25SQ: Red ● 2SQ: Blue

[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: Vinyl

[Set contents/accessories]
-

【Note】
-
