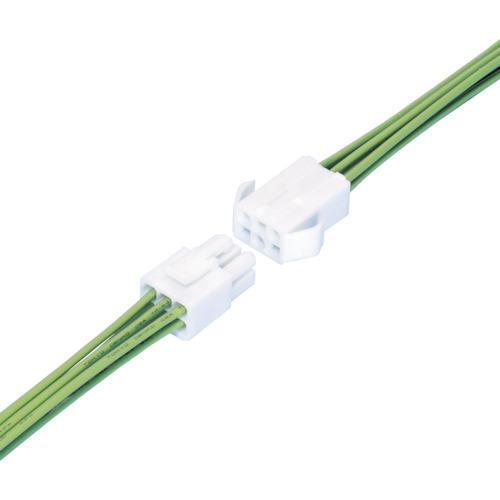

[Features] ● Uses a contact that is easy to insert and has excellent holding power. ●Compatible with ML connectors.

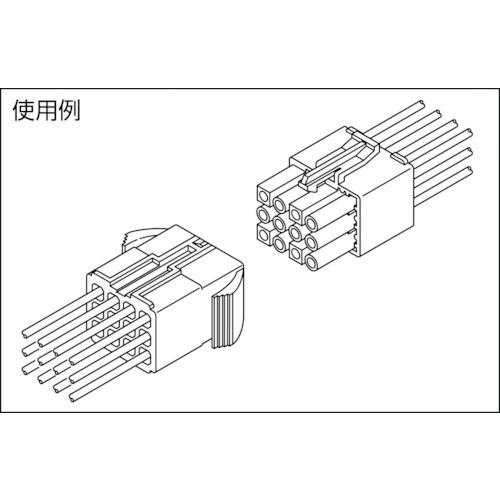

[Use] ●For relay connection. ● 4.5mm pitch for wire-to-wire connection.
[Specifications] A (mm): 24.6 Number of poles: 2 Applicable wire range: AWG#26 to #16, 0.13 to 1.25 mm [[squared]] B (mm): 14.6 Rated current: MAX 10A ● C (mm): 10.3 ● D (mm): 5.8 ● Insulation resistance: 1000 MΩ or more
[Specification 2] ●Rated voltage: MAX300V ●Operating temperature range: -25°C to +90°C (including temperature rise values) ●Withstand voltage: AC1500V/1 minute
