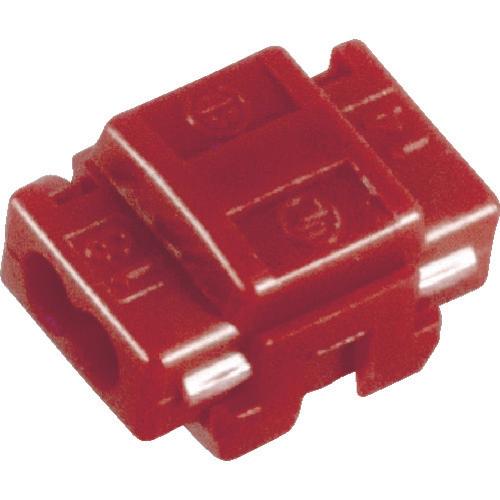

JST CL relay connection connector branch connection 100 pieces

[Features]● Press connection can be made with simple work. ● Excellent insulation performance eliminates the need to insulate connection wires. ●Equipped with a wire temporary fixing mechanism for improved workability.

[Use] ●For relay connection.

[Specifications] ●Shape: branch connection type ●Color: red ●Rated current: maximum 7A ●Applicable wire: AWG#22 to #18 ●W (mm): 13.8 ●H (mm): 11.0 ●L (mm): 20.0

[Specification 2] ●Rated voltage: 300V ●Operating temperature range: 105℃ (including temperature rise value)

[Material/Finish] ●Contact: Brass, tin-plated ●Housing: Nylon 6 (UL94V-2)

[Set contents/accessories]
-

【Note】
-
