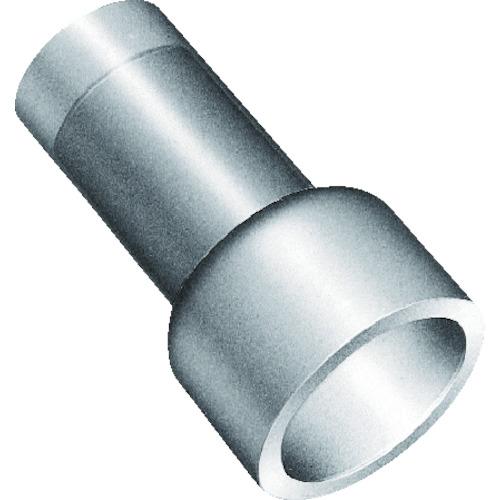

JST closed end connector CE-5 100 pieces included

[Features] ● One side of the insulating coating is closed.

[Applications] ● For wiring in equipment by overlapping multiple wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 2.5 to 6.0 ● Overall length (mm): 27.0 ● R (mm): 8.5 ● E (mm): 12.0 ● Inner diameter (mm): 9.5 ● JIS Standard product: Rated current (A): 600 Wire coupling range AWG: 12-10 Inner dimension (mm): 9.5 Color: Milky white General purpose tool: YS-1210

[Specification 2]
-

[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: Nylon

[Set contents/accessories]
-

【Note】
-
