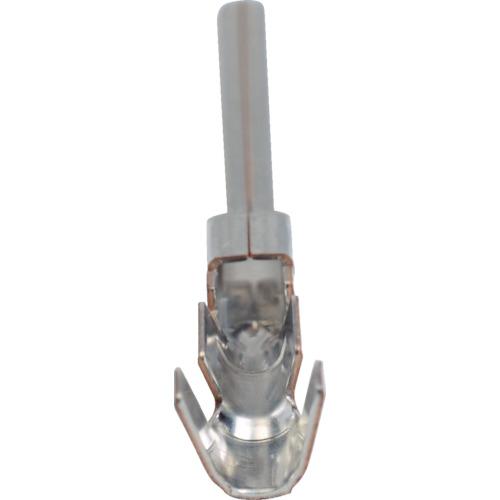

Pin contact for JST HL connector (100 pieces)

[Features] ● A free spring structure has been adopted for the contact area. ●Inner lock structure is adopted.

[Use] ●For relay connection. ● 3.96 mm pitch for wire-to-wire connection.

[Specifications] ● Applicable wire range: AWG #22 to #18, 0.3 to 0.75 mm [[squared]] ● Rated current: MAX7A ● Wire coating outer diameter (mm): 1.5 to 2.2 ● Insulation resistance: 1000 MΩ or more

[Specification 2] ● Rated voltage: MAX300V ● Operating temperature range: -25°C to +90°C (including temperature rise values) ● Withstanding voltage: AC1500V/1 minute

[Material/Finish] Phosphor bronze/tin plating (reflow treatment)

[Set contents/accessories]
-

【Note】
-
