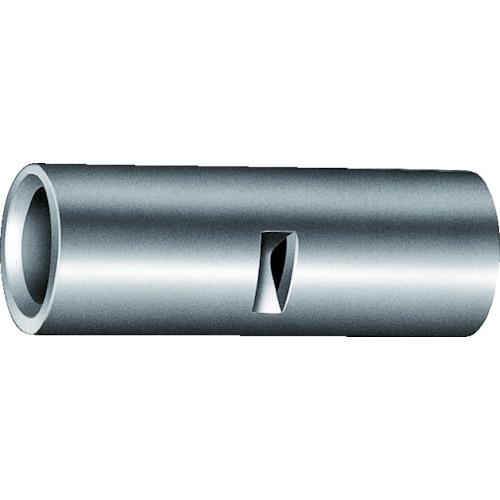

JST butt sleeve (B type) B-22 (10 pieces)

[Features]● There is a wire stopper on the cylinder.

[Applications] ● For crimping and connecting wires by inserting wires from both sides of the sleeve and butting the wires against each other using the protrusions (stoppers) inside the sleeve.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 16.78 to 26.66 ● Color: Silver ● Total length (mm): 29.0 ● Inner dimension (mm): 7.7 ● JIS standard product: ○ ● Wire coupling range AWG :Four

[Specification 2]
-

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
