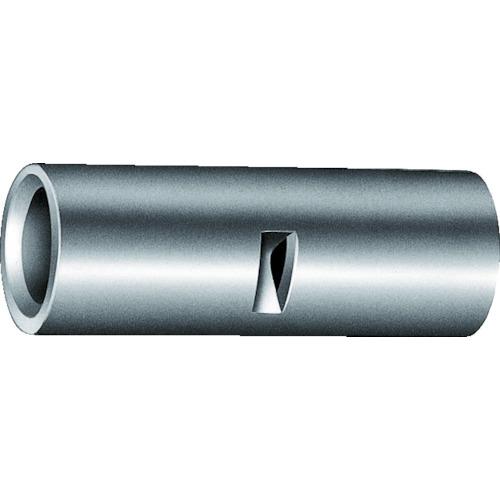

JST butt sleeve (B type) B-200 (1 piece included)

[Features]● There is a wire stopper on the cylinder.

[Applications] ● For crimping and connecting wires by inserting wires from both sides of the sleeve and butting the wires against each other using the protrusions (stoppers) inside the sleeve.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 192.60 to 242.27 ● Color: Silver ● Total length (mm): 63.0 ● Inner dimension (mm): 24.0 ● JIS standard product: ○ ● Wire coupling range AWG : 400 MCM

[Specification 2]
-

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
