JST Round terminal 38-S10 (10 pieces) 38-S10 JST

[Features]

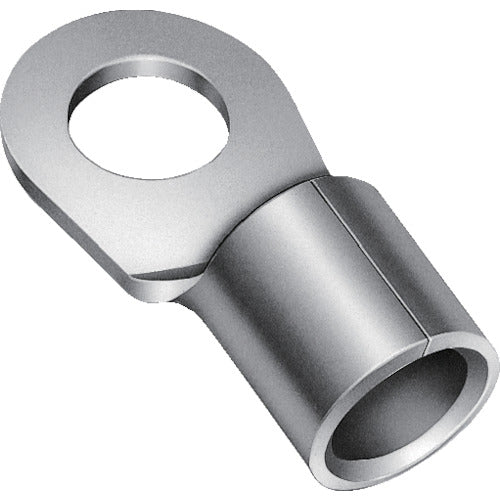

This is a bare crimp terminal with a round contact surface (tongue) and mounting holes for screw fixing.

[Applications]
Used to connect soft copper stranded wire or solid wire.

【specification】
Wire confinement range Single wire (mm): 5.81 to 7.34
Wire clamping range: Stranded wire (mm2): 26.66 - 42.42
Wire clamping range AWG: 2

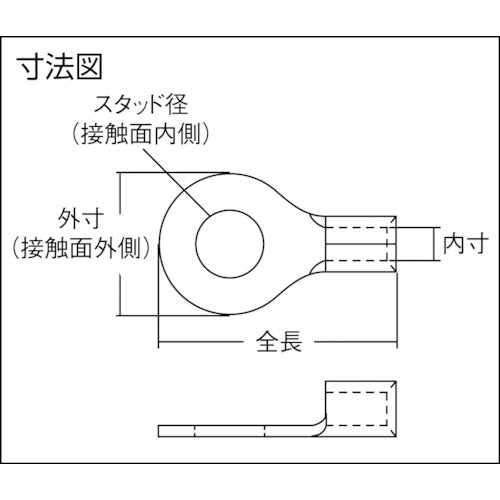

Outer diameter (mm): 15.5
Stud diameter (mm): 10.5
Total length (mm): 38.0
Inner dimensions (mm): 9.4
JIS standard product: ×
Color: Silver

[Specification 2]
Round

[Material/Finish]
Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating

[Set contents/accessories]
-

【Note】
-
