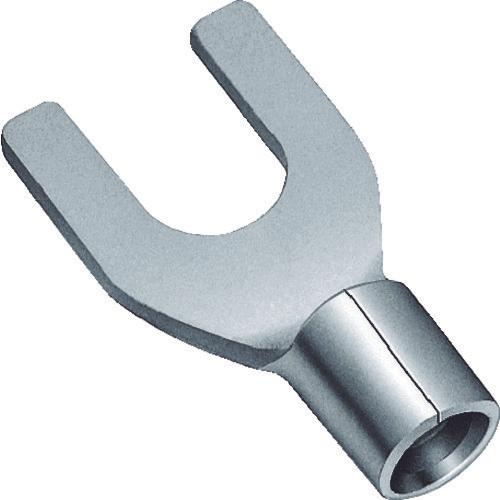

JST square tip open type terminal 2-N3A (1 bag (box) = 100 pieces)

[Features]- A bare crimp terminal that can be attached without completely removing the screw, as one of the mounting holes on the contact surface (tongue) is open.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Stud diameter (mm): 3.2 ● Overall length (mm): 15.8 ● Inner dimension (mm): 2.3 ● Wire coupling range Single wire mm: 1.14 to 1.82 ●Wire coupling range AWG: 16-14 ●Color: Silver

[Specification 2] Open-ended type/single wire compatible type

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
