JST round terminal 2-3 (1 bag (box) = 100 pieces)

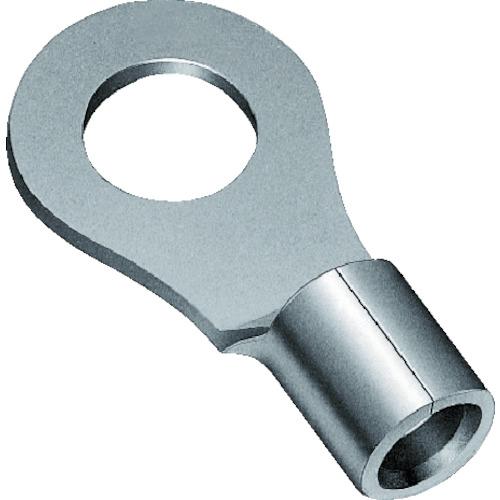

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Stud diameter (mm): 3.2 ● Overall length (mm): 16.8 ● Inner dimension (mm): 2.3 ● JIS standard product: ×● Wire coupling range Single wire mm: 1.14 to 1.82 Wire coupling range AWG: 16-14 Color: Silver

[Specification 2] Round shape

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
