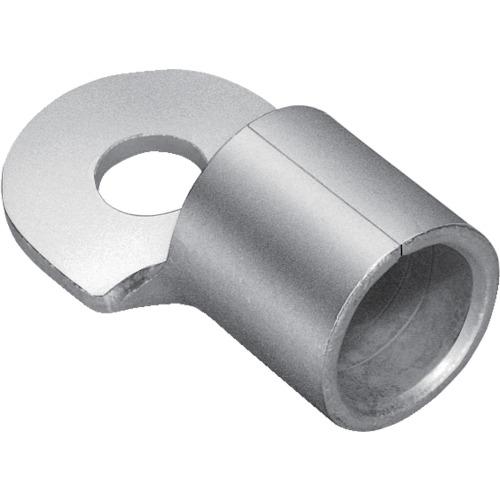

JST round terminal 200-10 (2 pieces included)

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 192.60 to 242.27 ● Stud diameter (mm): 10.5 ● Total length (mm): 72.0 ● Internal dimensions (mm): 24 ● JIS standard product: × ● Wire connection range Single wire mm: 15.6 to 17.5 Wire connection range AWG: 400MCM Color: Silver

[Specification 2] Round shape

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
