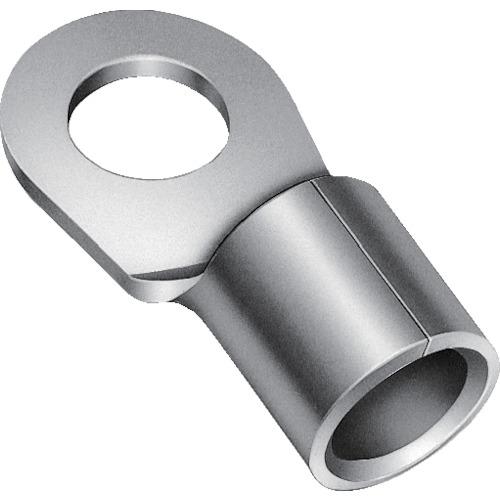

JST round terminal 14-8NS (10 pieces included)

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 10.52 to 16.78 ● Stud diameter (mm): 8.4 ● Total length (mm): 30.8 ● Internal dimensions (mm): 5.8 ● JIS standard product: × ● Wire connection range Single wire mm: 3.65 to 4.62 Wire connection range AWG: 6 Color: Silver

[Specification 2] Round shape

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating
