JST round terminal 0.5-3 (100 pieces included)

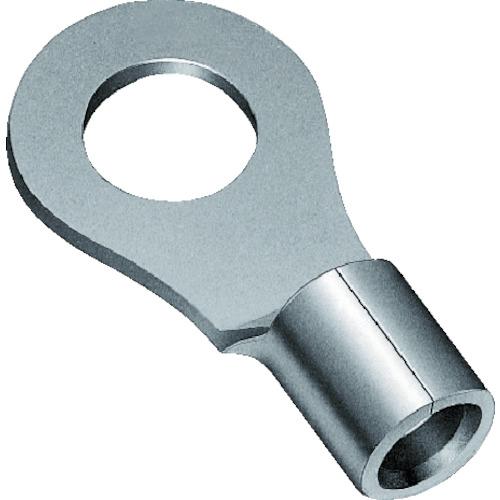

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.2 to 0.5 ● Stud diameter (mm): 3.2 ● Overall length (mm): 12.4 ● Inner dimension (mm): 1 ● JIS standard product: ×● Wire coupling range Single wire mm: 0.35 to 0.7 Wire coupling range AWG: 26-22 Color: Silver

[Specification 2] Round shape

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
