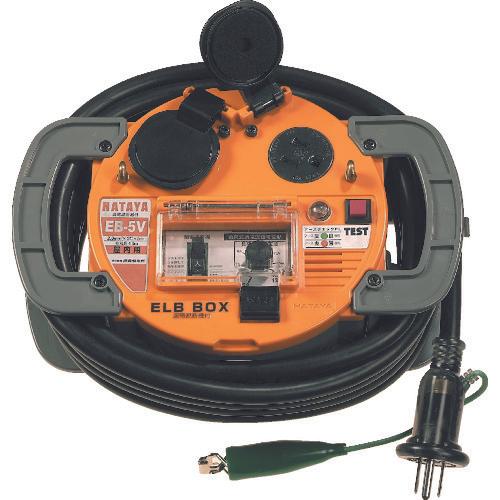

HATAYA load current value setting variable type ELB box electric wire 5m

[Features]●The cut-off current value can be variably set according to the current value of the device used, preventing the main breaker from going down.

[Use] ● When using the home outlet of the construction owner mainly for renovation work. ●For construction work in which shutting down the main power supply of copiers and personal computers in use in an office or office would cause a great deal of trouble for recovery.

[Specifications] ● Wire type: VCT ● Wire specifications length (m): 5 ● Wire specifications thickness ([[MM2]]): 2.0 ● Wire specifications Number of cores (C): 3 ● Rated current (A): 15 ● Outlet specification shape: [[3-phase 1]] ● Outlet specification number: 2 ● Color: black ● Outlet specification rating: 2P, 15A, 125V with grounding ● Grounding terminal: ○ Outlet specification rating: 2P, 15A, 125V grounding attached

[Specification 2] ● With grounding terminal ● With outlet dust cap ● With variable load current value setting earth leakage breaker (volume can be adjusted from 5 to 15 A) ● PILOT lamp: ○ ● Jump-out plug: ○

[Material/Finish]
-

[Set Contents/Accessories] Earth check PILOT lamp

【Note】
-
