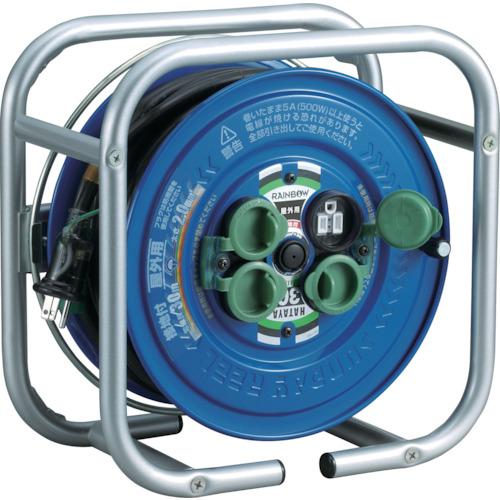

HATAYA stacking reel cable type standard type with ground

[Features] ● Square frame type that can be stacked. ●Limited spaces such as warehouses and vehicles can be used effectively. -It can be used standing up or lying down, and is convenient to carry. ●Equipped with a dedicated ring metal fitting to prevent troublesome wire winding down to the back side of the disk. ●Up to 5 layers can be stacked. ●It is a rainproof type that is safe even in the rain.

[Applications] ● For storage in warehouses and effective use of storage space when in-vehicle.

[Specifications] - Wire type: VCT - Wire specification length (m): 30 - Wire specification thickness ([[MM2]]): 2.0 - Wire specification number of cores (C): 3 - Rated current (A): 5 ●Outlet specification rating: 2P, 15A, 125V with ground ●Outlet specification shape: [[Three-phase 1]] ●Outlet specification number: 4 ●Earth leakage circuit breaker specification: none ●Temperature sensor: -●Power supply lamp:- ●Ground terminal :- 2P/3P combined plug:○

[Specification 2] AC100V Outlet rainproof cap

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
