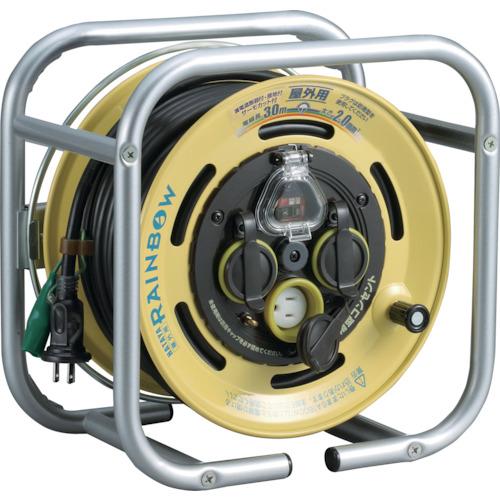

HATAYA stacking reel cable type with earth leakage breaker with grounded temperature sensor

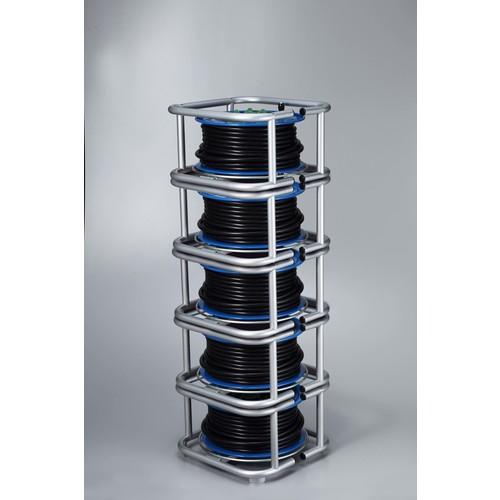

[Features] ● Square frame type that can be stacked. ●Limited spaces such as warehouses and vehicles can be used effectively. -It can be used standing up or lying down, and is convenient to carry. ●Equipped with a dedicated ring metal fitting to prevent troublesome wire winding down to the back side of the disk. ●Up to 5 layers can be stacked. ●It is a rainproof type that is safe even in the rain.

[Applications] ● For storage in warehouses and effective use of storage space when in-vehicle.

[Specifications] ● Wire type: VCT ● Wire specifications length (m): 30 ● Wire specifications thickness ([[MM2]]): 2.0 ● Wire specifications Number of cores (C): 3 ● Rated current (A): 6 ●Outlet specification rating: 2P, 15A, 125V with earth ●Outlet specification shape: [[Three-phase 1]] ●Outlet specification number: 3 ●Earth leakage circuit breaker specifications: Electric leakage overload short circuit protection ●Temperature sensor: ○ ●Power supply lamp :○●Ground terminal:○●2P/3P combined plug:○

[Specification 2] AC100V Outlet rainproof cap

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
