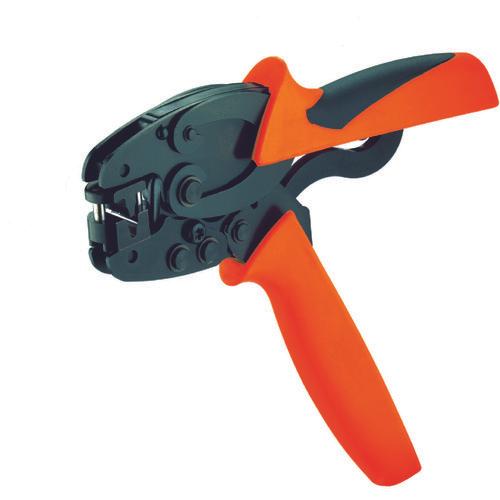

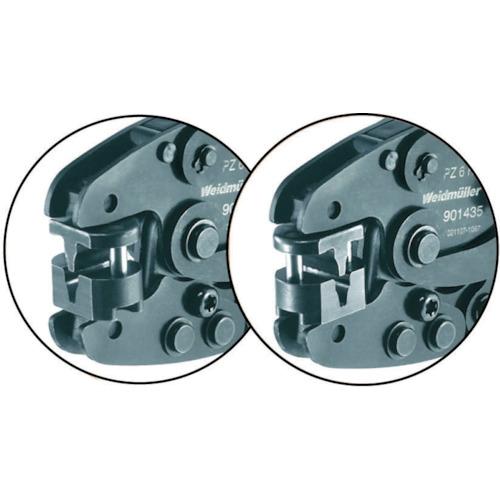

[Features]● The unique omega ring mechanism enables optimal processing with light force, reducing the burden on workers. ●With a ratchet mechanism that does not release unless the handle is gripped to the end, it reduces variations in work and crimping errors, and provides stable quality. ●The clamping position can be rotated, and the sleeve can be inserted and crimped from the front or side. ● A crimping tool for crimping terminals/sleeves (ferrules) up to 6 mm. ●All sizes of wires can be processed with one crimping groove, so there is no need to worry about processing with the wrong groove.

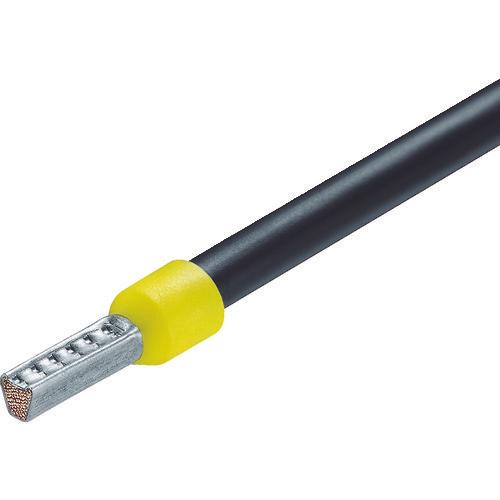

[Applications] ●For crimping terminals/sleeves (ferrules) based on DIN 462228 parts 1 and 4.

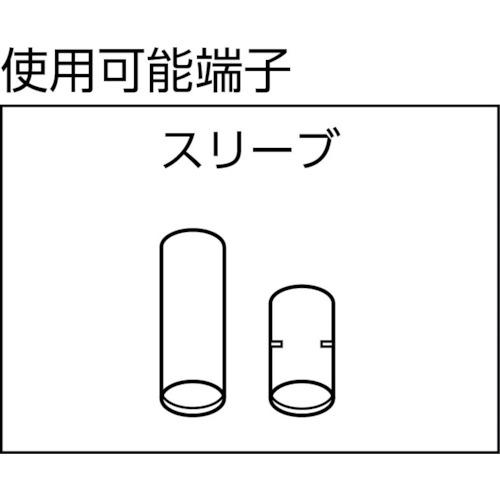

[Specifications] Total length (mm): 200 Crimping range: For 1 sleeve 0.14 to 6 [[MM2]] (AWG26 to 10) For 2 sleeves 0.5 to 4 [[MM2]] (AWG21 to 12)
