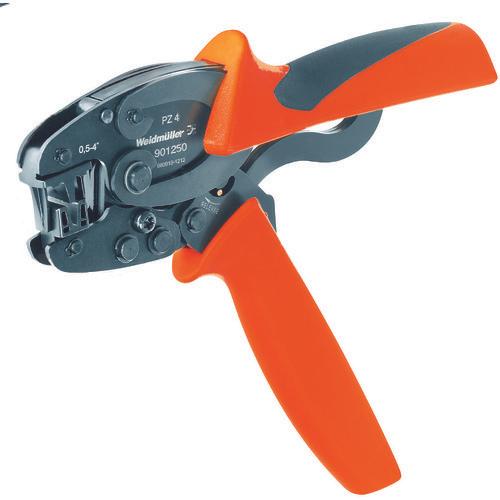

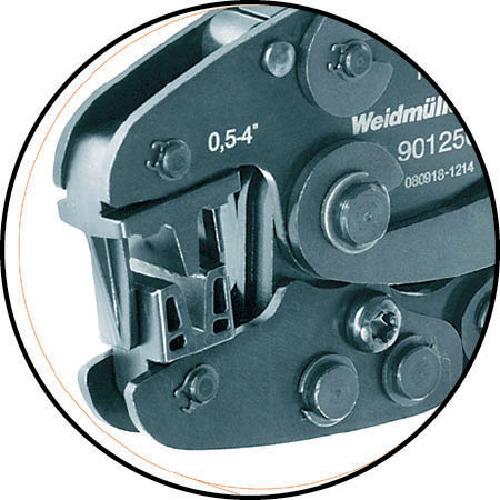

[Features]● The unique omega ring mechanism enables optimal processing with light force, reducing the burden on workers. ●With a ratchet mechanism that does not release unless the handle is gripped to the end, it reduces variations and crimping mistakes by operators and provides stable quality. ●All sizes of wires can be processed with one crimping groove, so there is no need to worry about processing with the wrong groove. ● A crimping tool for crimping terminals/sleeves (ferrules) up to 4mm2.

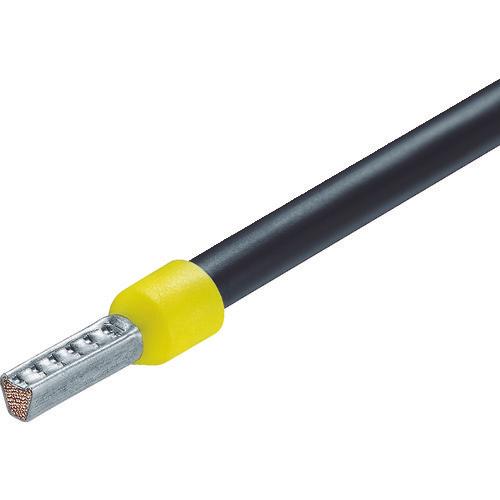

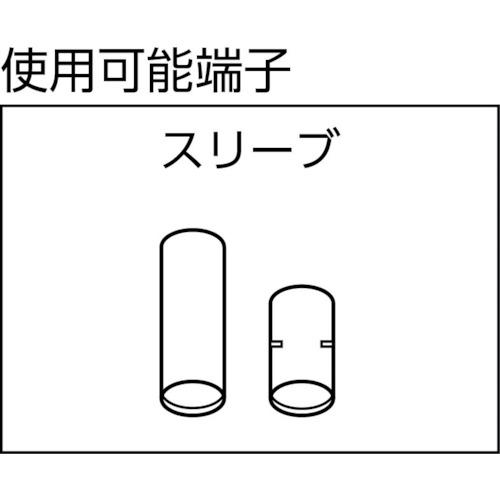

[Applications] ●For crimping terminals/sleeves (ferrules) based on DIN 462228 parts 1 and 4.
[Specifications] Total length (mm): 200 Crimping range: 0.5 to 4 [[MM2]] (AWG21 to 12) for 1 sleeve 0.5 to 2.5 [[MM2]] (AWG21 to 14) for 2 sleeves Crimping Range (sleeve for one): 0.5 to 4 [[MM2]] (AWG21-12)
[Specification 2] Crimping range (2 sleeves): 0.5 to 2 mm [[square of]] (AWG21-14)
